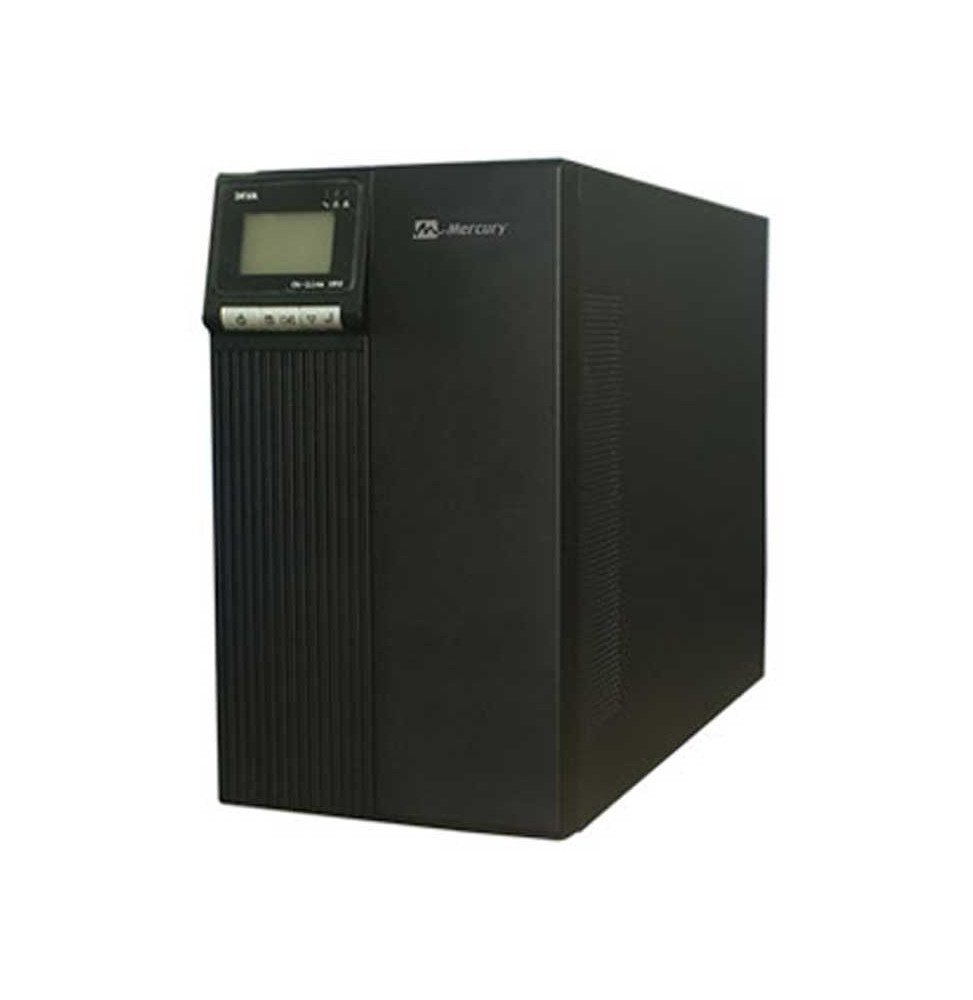

Mercury Online HP920C-S 2KVA/1.6KW UPS
Mercury HP920C-S 0.8PF, Online UPS 2KVA/1.6KW 1/1phase, 1x IEC320-C20 Input Socket 4 x IEC320-C13 output sockets, 4 x IEC320-C14 output cable, 96VDC (8x7AH/12V Battery), RS232 & USB Communication
For your sensitive equipment where zero tolerance for a break in a power supply is imperative, an online UPS is what to deploy. That would be the case with such applications as small network systems, servers, and other IT equipment. An online UPS not only provides the required power backup but also ensures zero switch-over time to prevent service disruption.
When you want the perfect balance between top performance, reliability, and budget-friendly pricing, the Mercury online UPS range has an outstanding rating. With the Mercury 2kva online UPS, you get that high-rated performance from a 1400 W capacity UPS.
With a rated capacity of 1400W, the Mercury 2KVA online UPS can support multiple office devices. It will deliver up to 19 minutes of power backup at half load and some 8 minutes of backup at full load. Powered by 3x 7AH battery, the Mercury 2KVA online UPS meets the backup requirement for most small office appliances.
MERCURY 2KVA/1.6KW ONLINE UPS FEATURES;
The advanced design of the Mercury online UPS range gives them the performance edge that you expect. Here’s more on the features you will expect from the Mercury 2KVA Online UPS:
- Capacity: 2KVA / 1600W
- Phase: Single Phase
- Technology: High frequency and double conversion online technology
- Fully digitized microprocessor control
- Wide input voltage range: 115VAC(±5) ~ 295VAC(±5) if load ≤ 70%
- LCD
- UPS startup without battery
- Cold start
- Advanced battery management
- Automatic battery charge in UPS off-mode
- Lightning and surge protection
- Short circuit and overload protection
- Fan speed auto control when loads vary
- Network/Fax/Modem surge protection
- Optional extension battery pack
- Battery voltage display
- Load capacity display
- EMI/RFI noise filter
- Smart RS232 communication with monitoring software
- Optional SNMP Card slot
- EPO function(optional)
- Input L and N reversed alarm function
- Battery: 3x 12V / 7AH
- Ideal applications: Small network, servers, and other IT equipment
SPECIFICATIONS OF MERCURY 2KVA UPS
Here are the specs:
| Capacity | 2KVA / 1600W |
| Phase | Single Phase |
| Input voltage | 115VAC(±5) ~ 295VAC(±5) if load ≤ 70%; 160VAC(±5) ~ 295VAC(±5) if load ≥ 70% |
| Frequency | 46 ~ 54±0.5Hz; 56 ~ 64±0.5Hz auto-sensing |
| Input power factor | ≥ 0.97 |
| Output voltage | 220/230VAC ± 2% |
| Frequency | 50Hz / 60Hz ± 0.2% |
| THD | < 3% (linear load); < 6% (non linear load) |
| Overload capability | > 110%, 30s turn to bypass mode; > 150%, 300ms turn to bypass mode |
| Crest factor | 3:1 (max) |
| Short circuit protection | • 5 cycles turn off the inverter, no transfer tp bypass, provide alarm (AC mode); • 5 cycles turn off the inverter, provide alarm (AC mode); • Input fuse blown or breaker action (bypass mode) |
| Waveform | Pure sine wave |
| Transfer time | • 0ms between AC mode & Bypass mode • 4ms (typical 2.5ms) between Inverter mode & Bypass mode |
| Efficiency | ≥ 85% |
| Model | 12V sealed lead acid maintenance-free |
| Battery | 8x 12V / 7AH |
| DC voltage | 96VDC |
| Back-up | 19min (half load); 8min (full load) |
| Recharge time | 8hours ~ 90% capacity |
| Charge current | 1A(standard unit);6A(long time unit) |
| Communication interface | RS232 ; SNMP (optional) |
| LED indication | Load or battery capacity |
| Noise level | < 45dB |
| Temperature | 0 ~ 40˚C |
| Humidity | 0% ~ 95% (non-condensing) |
| Altitude | < 1500m |
| Storage temperature | -25 ~ 55˚C |
| Standard unit (net/gross) | 33 / 35kg |
| Long time unit (net/gross) | 14 / 16kg |
| Dimension (WxDxH)mm | 191 x 478 x 339mm |
| Packing(WxDxH)mm | 332 x 603 x 482mm |
