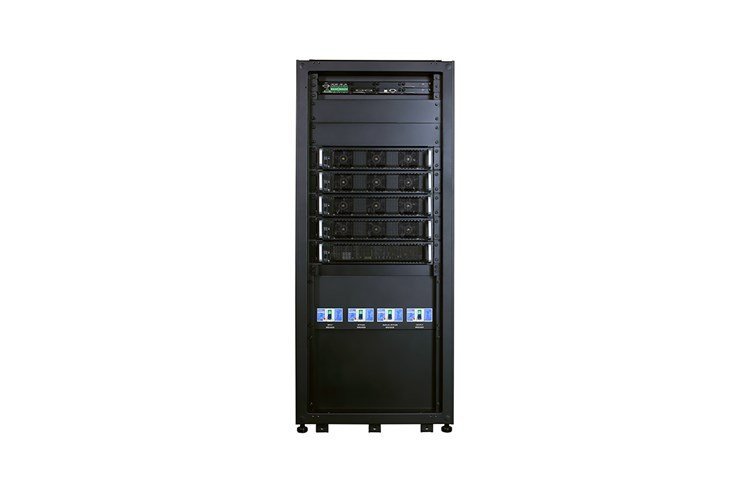

DPH GEN2 120KVA Delta UPS

Technical Specifications

Model

DPH-120K

Power Rating

120 kVA/kW
20 kW Power Module Quantity: Up to 6 units

Input

Nominal Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)

Voltage Range: 305~478 Vac (full load), 228~478 Vac (70% load)

Current Harmonic Distortion: ≤ 2% *

Power Factor: > 0.99

Frequency Range: 50/60 Hz

Output

Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)

Voltage Harmonic Distortion: ≤ 1% (linear load); ≤ 4% (non-linear load)

Voltage Regulation: ± 1% (static)

Frequency: 50/60 Hz

Overload Capability: ≤ 125%: 10 minutes; ≤ 150%: 1 minute; > 150%: 1 second

Display: 10” color touch screen

Interface

Standard
External battery temperature detection x 4, External switch/breaker status dry contact x 4, Output dry contact x 6, Input dry contact x 4, Parallel port x 2, USB Port (Type A x 2; Type B x 1), RS232 Port x 1, Modbus Port x 1, BMS (RJ45) x 1, Ethernet x 1, SNMP Slot x 1, REPO Port x 1

Conformance

Safety: CE

Efficiency

AC-AC: > 96% (Peak efficiency)
ECO Mode: 99%

Battery

Nominal Voltage: ± 240 Vdc (default, ± 180 Vdc ~ ± 276 Vdc configurable)

Charge Voltage: ± 272 Vdc (adjustable from 204 V to 312 V)

Protection of Battery Deep Discharge: Yes

Environment

Operating Temperature: 0~40℃

Relative Humidity: 95% (non-condensing)

Audible Noise (at one meter): < 65 dB

IP Protection: IP20

Others

Parallel Redundancy and Expansion: Module and system redundancy, Maximum 8 units

Battery Start: Yes

Physical

Dimensions (W x D x H): 600 x 850 x 1445 mm

Weight – UPS System (without power modules)
162 kg

Weight – 20 kW Power Module (optional): 18 kg
