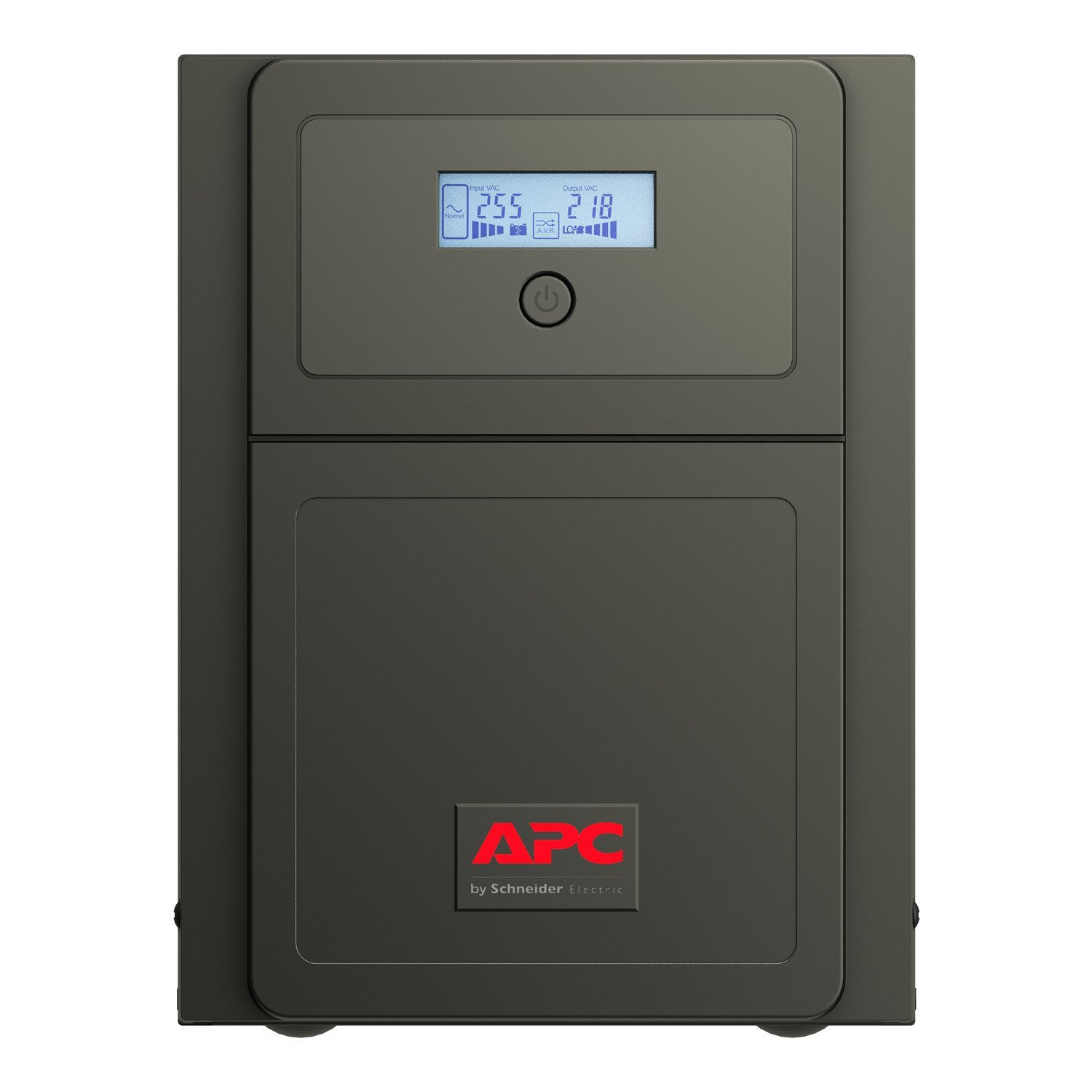

APC Easy UPS 1 Ph Line Interactive, 3kVA, Tower, 230V – SMV3000AI
The APC Easy UPS SMV3000AI provides reliable power protection for sensitive equipment and is designed to handle unstable power conditions, ensuring consistent and uninterrupted connectivity. Ideal for home or small office environments where power reliability is crucial.
Key Features:
- Capacity and Connections:
- Output Power Capacity: 2100 Watts / 3000 VA
- Output Connections: 6 IEC 60320 C13 outlets (Battery Backup)
- Nominal Output Voltage: 230V
- Input Connections: IEC 60320 C20
- Battery and Runtime:
- Battery Type: Lead-acid
- Nominal Battery Voltage: 48V
- Typical Recharge Time: 4 hours
- Replacement Battery: APCRBCV209
- Expected Battery Life: 3 to 5 years
- Battery Charge Power: 99 Watts
- Battery Volt-Amp-Hour Capacity: 432
- Run Time: Varies by the load; view the runtime graph for specifics.
Input and Output Specifications:
-
-
- Input Voltage Range: 165V – 295V (Auto-sensing)
- Input Frequency: 45-65 Hz +/- 1 Hz
- Output Frequency: 50/60 Hz +/- 1 Hz (Unsynchronised)
- Topology: Line interactive
- Waveform Type: Sine wave
- Transfer Time: 2-6 ms typical, 12 ms maximum
-
Advanced Features:
- Automatic Voltage Regulation (AVR): Corrects low and high voltage conditions without using battery power.
- Cold-Start Capable: Provides temporary battery power when utility power is out.
- Pure Sine Wave Output: Ensures compatibility with active PFC (power factor corrected) servers and sensitive electronics.
- LCD Graphics Display: Shows modes of operation, system parameters, and alarms.
-
Manageability:
- LED Indicators: Provide the status of unit and utility power conditions.
- Audible Alarms: Notify changing utility power and UPS conditions.
-
Safety and Protection:
- Advanced Safety Features: Protects against overloads, excessive mains voltages, short circuits, and battery damage.
- Battery Failure Notification: Early warning of battery faults for timely maintenance.
- Battery and Surge Protected Outlets: Provides backup and protection for connected equipment.
-
Design and Mounting:
- Sleek Design: Can be placed upright, flat, or wall-mounted to fit various setups.
- Transformer-Block Spaced Outlets: Accommodates input transformer blocks without blocking other outlets.
-
Physical Specifications:
- Height: 240 mm
- Width: 180 mm
- Depth: 455 mm
- Net Weight: 25.2 kg
- Color: Black
-
Environmental Conditions:
- Operating Temperature: 0 – 40 °C
- Operating Relative Humidity: 0 – 95% (Non-condensing)
- Operating Elevation: 0 – 3000 meters
- Storage Temperature: -10 – 40 °C
- Storage Relative Humidity: 0 – 95% (Non-condensing)
- Storage Elevation: 0 – 15000 meters
- Audible Noise: 45.0 dBA
- Protection Class: IP20
-
Certifications and Warranty:
- Certifications: CE, UKCA
- RoHS Compliant: Yes
- Standard Warranty: 2 years repair or replace
-
Included Accessories:
- Documentation CD
- USB Cable
- User Manual
Order the APC Easy UPS SMV3000AI for dependable power protection and efficient management of your critical equipment, with enhanced runtime and advanced features tailored to maintain operational continuity during power disturbances.
