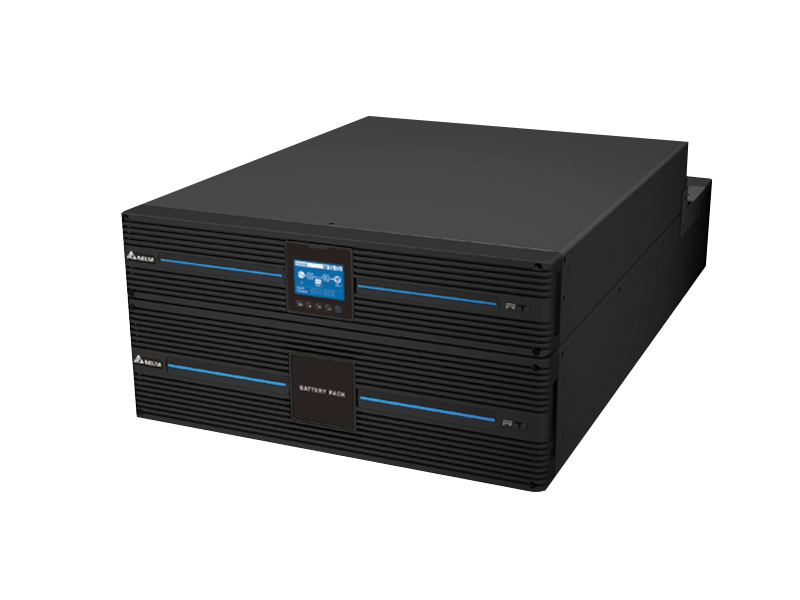

RT 6kVA S w/ 16x7Ah batt. & PDB Uninterruptible Power Supply (UPS602R2RT0B035)

The RT series combines on-line double conversion UPSs that combine best-in-class circuitry with compact size (2U height), high efficiency and power density, and versatile configurations to meet all customer requirements.

Unity output power factor provides maximum active power transfer to the load. Exceptional energy savings are achieved with an efficiency of up to 96.5% in normal mode and 99% in economy mode.

RT 6kVA Series UPS Features

• Double conversion on-line UPS topology with zero transfer time to batteries provides 24/7 continuous power protection
• The wide input voltage range allows the UPS to operate in unstable power grids and reduces the number of times the batteries are charged, thereby extending battery life.
• If mains voltage is present, the UPS can be turned on even if the battery is not connected to it
• Programmable outlet group disconnects non-essential consumers during a mains power failure to supply more power to priority loads
• Up to four UPSs can be connected in parallel for redundancy and load expansion
• Hot-swap support allows batteries to be replaced without interrupting UPS operation
• External battery cabinet with VRLA or Li-ion batteries
• Long battery life models support a flexible number of batteries to optimize battery acquisition costs. If one battery fails, it can be removed without replacing the entire battery group, reducing maintenance costs and labor
• Power Distribution Block (PDB) and Maintenance Bypass Switch (MBB) standard on RT 5-10kW Standard Runtime UPSs provide easy system configuration
• Maintenance bypass switch (MBB) allows easy UPS replacement without powering down critical loads
• Rack Mounted Power Distribution Cabinet (rRPP), which can be built into a standard server rack, simplifies output power distribution and control
• Using a shared battery configuration with a UPS in parallel reduces space and battery purchase costs

RT 6kVA Technical Features
